Motors

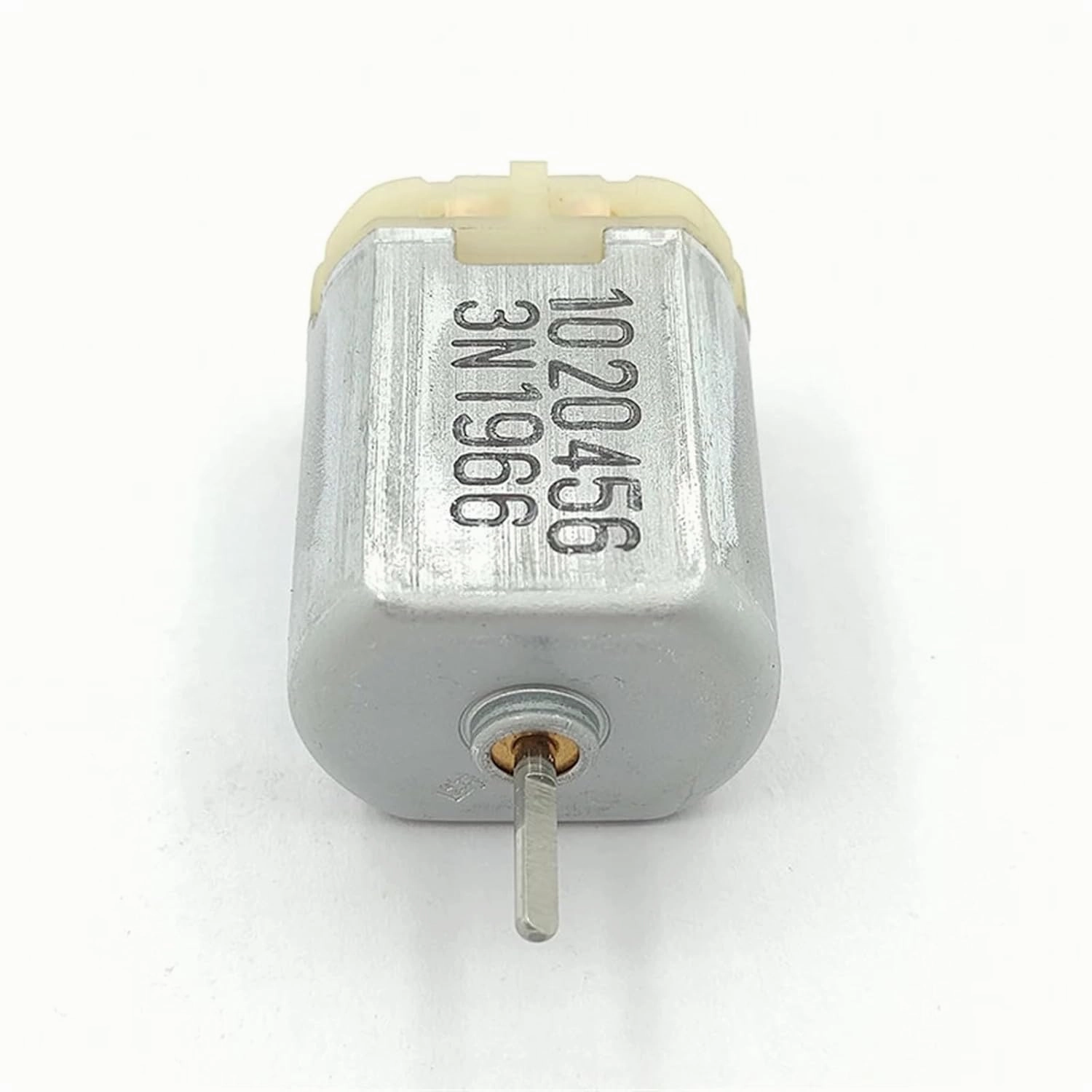

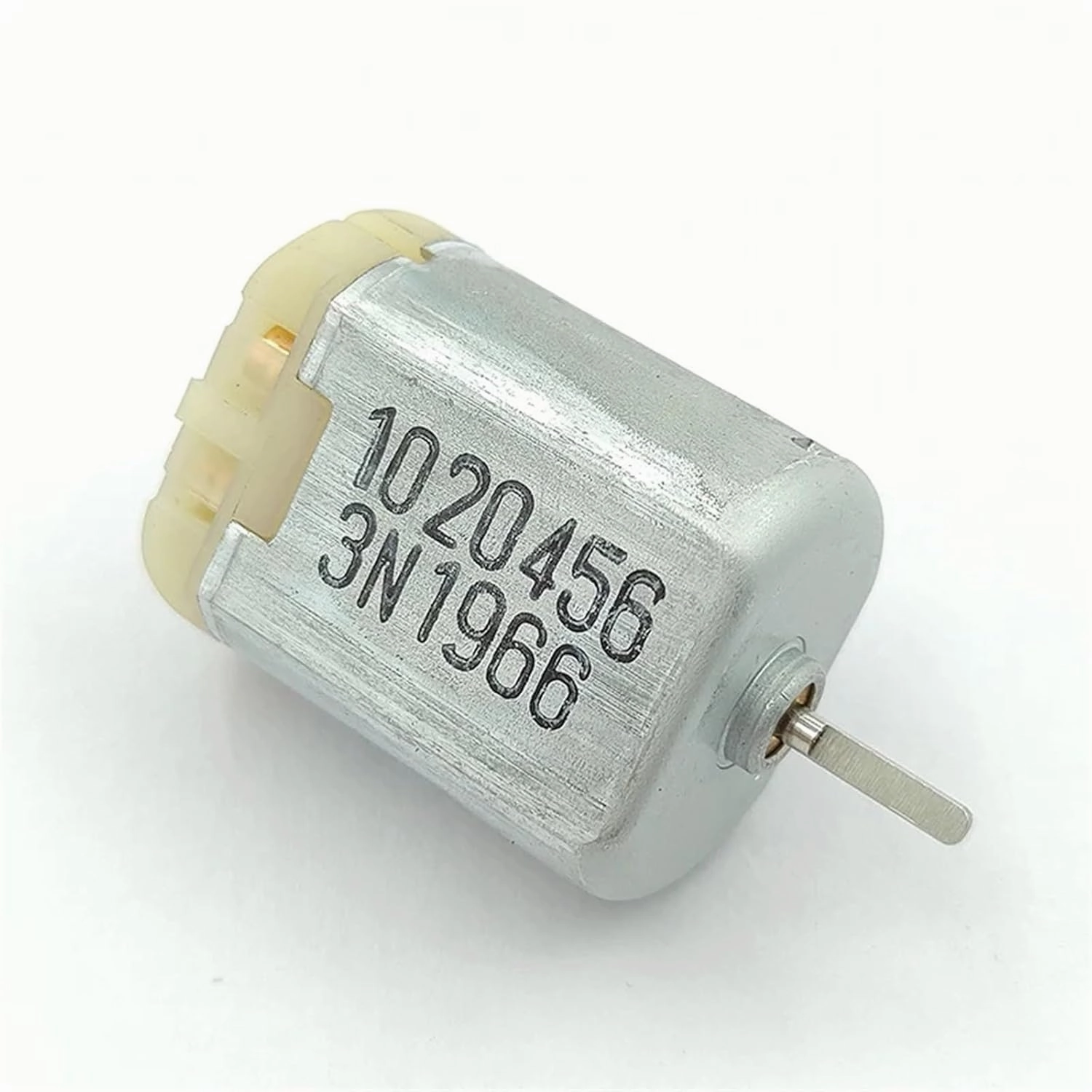

Model : 1020456 (this motor parameter close to FC-280SC-20150)

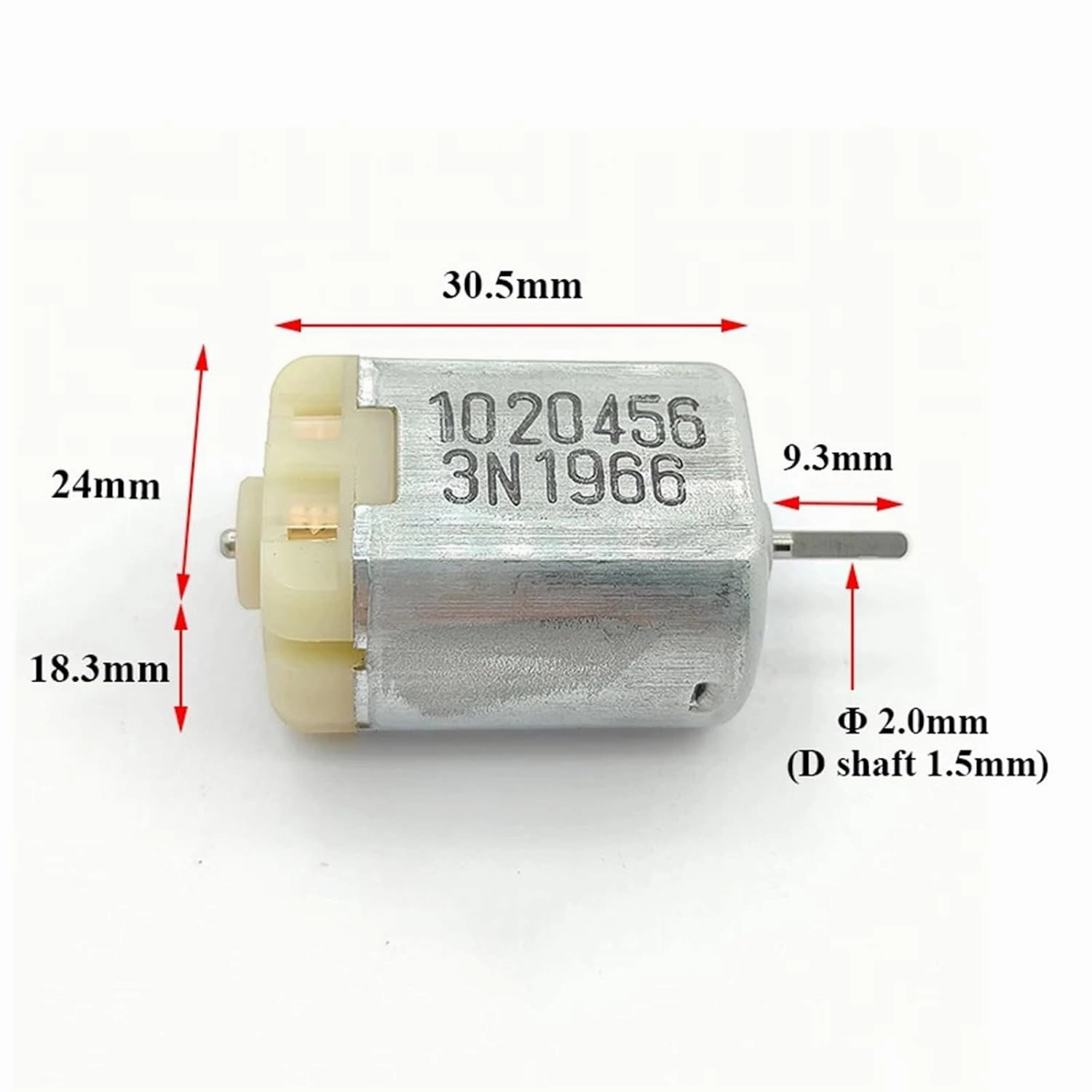

Motor size: 24mm*18.3mm*30.5mm
Output shaft diameter: 2mm (D shaft 1.5mm)
Output shaft length: 9.3mm
Weight: 40g
Rated voltage: DC 12V
No-load current: 110mA
No-load speed: 11800RPM
Suitable voltage: DC 8V-16V
Package List:
Motor x 1PCS
Usage : CAR
Model Number : Mini 280 Motor
Construction : Permanent Magnet
Type : Motor
Feature : Explosion-proof
Commutation : Brush
Efficiency : IE 1
Model number : 1020456
Motor size : 24mm*18.3mm*30.5mm
Output shaft diameter : 2mm (D shaft 1.5mm)
Rated voltage : DC 12V

• Package Dimensions ‏ : ‎ 0.39 x 0.39 x 0.39 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ May 26, 2025
• Manufacturer ‏ : ‎ CXYFQUUK
• Country of Origin ‏ : ‎ China
