Motors
Specification:

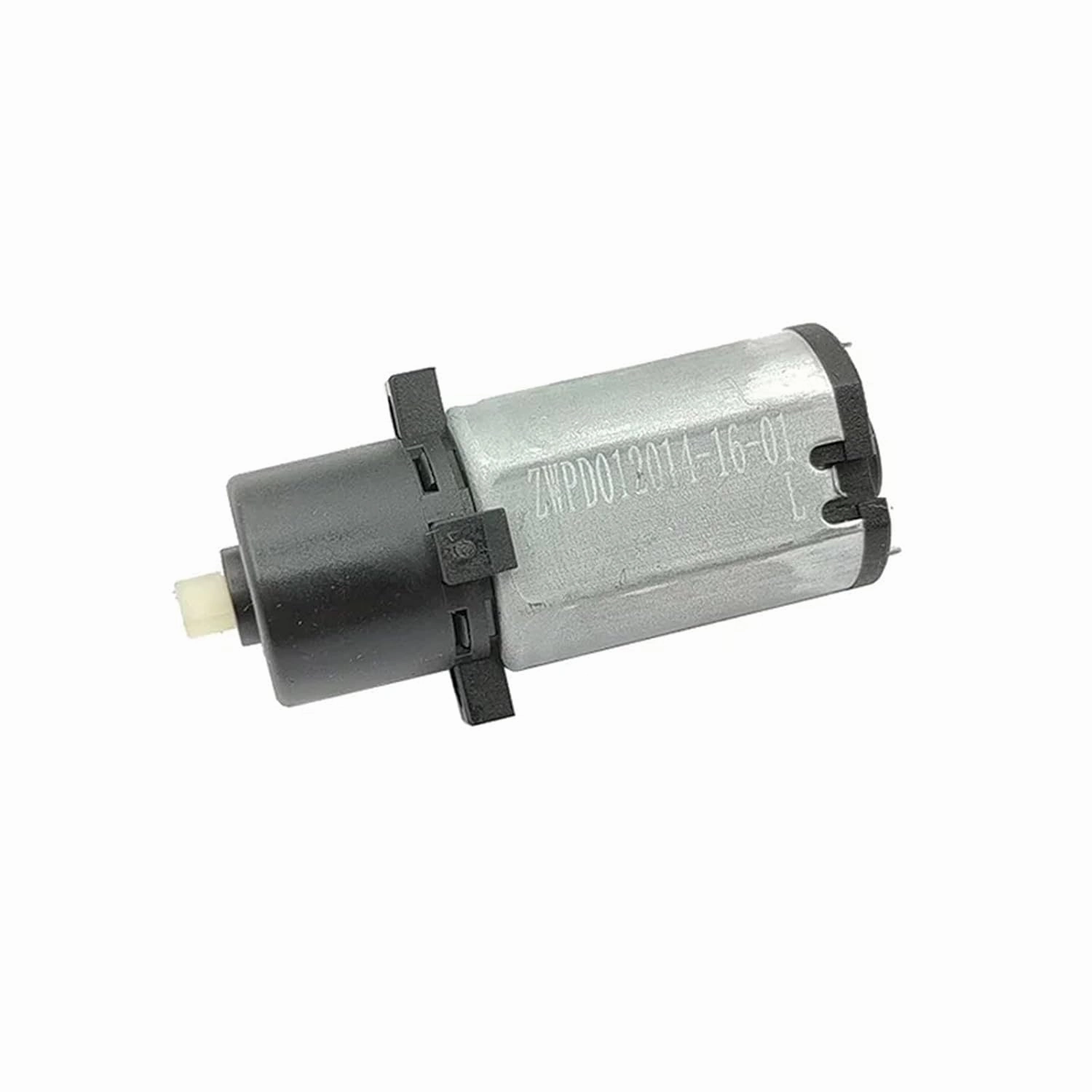

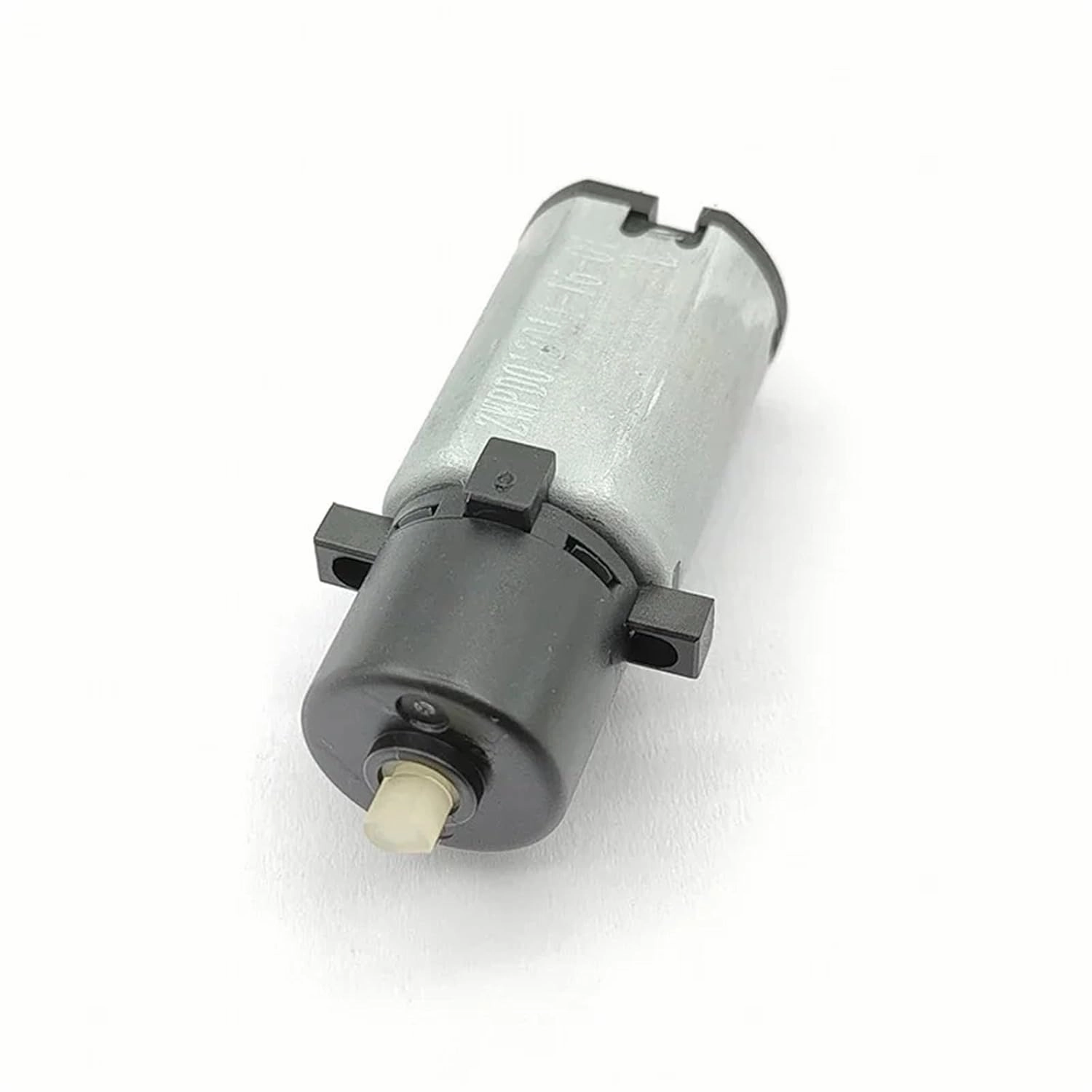

1.Motor model: Mini 031 Motor
2.Gearbox diameter: 11.8mm

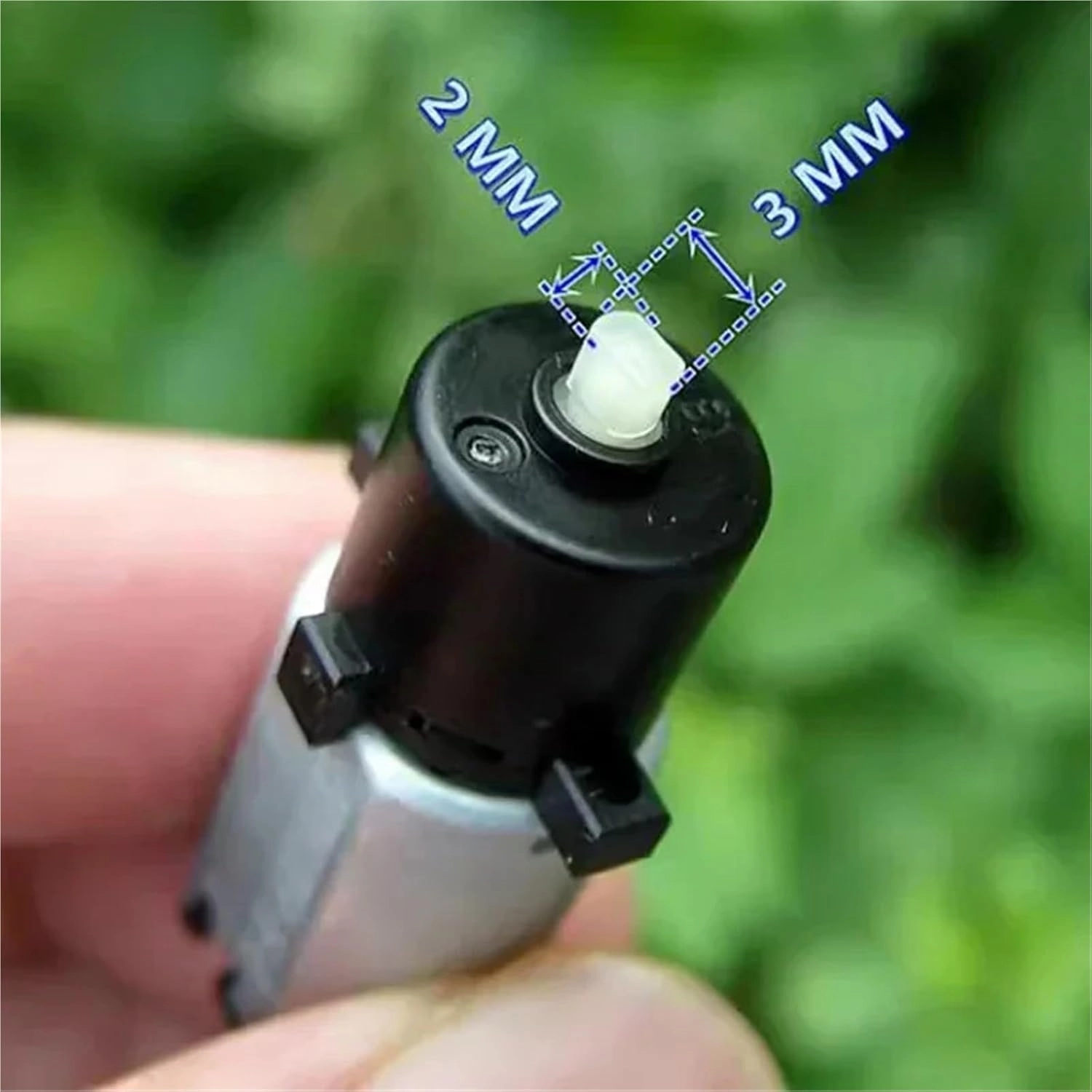

3.Output shaft diameter: 3mm (dual flat shaft 2mm)

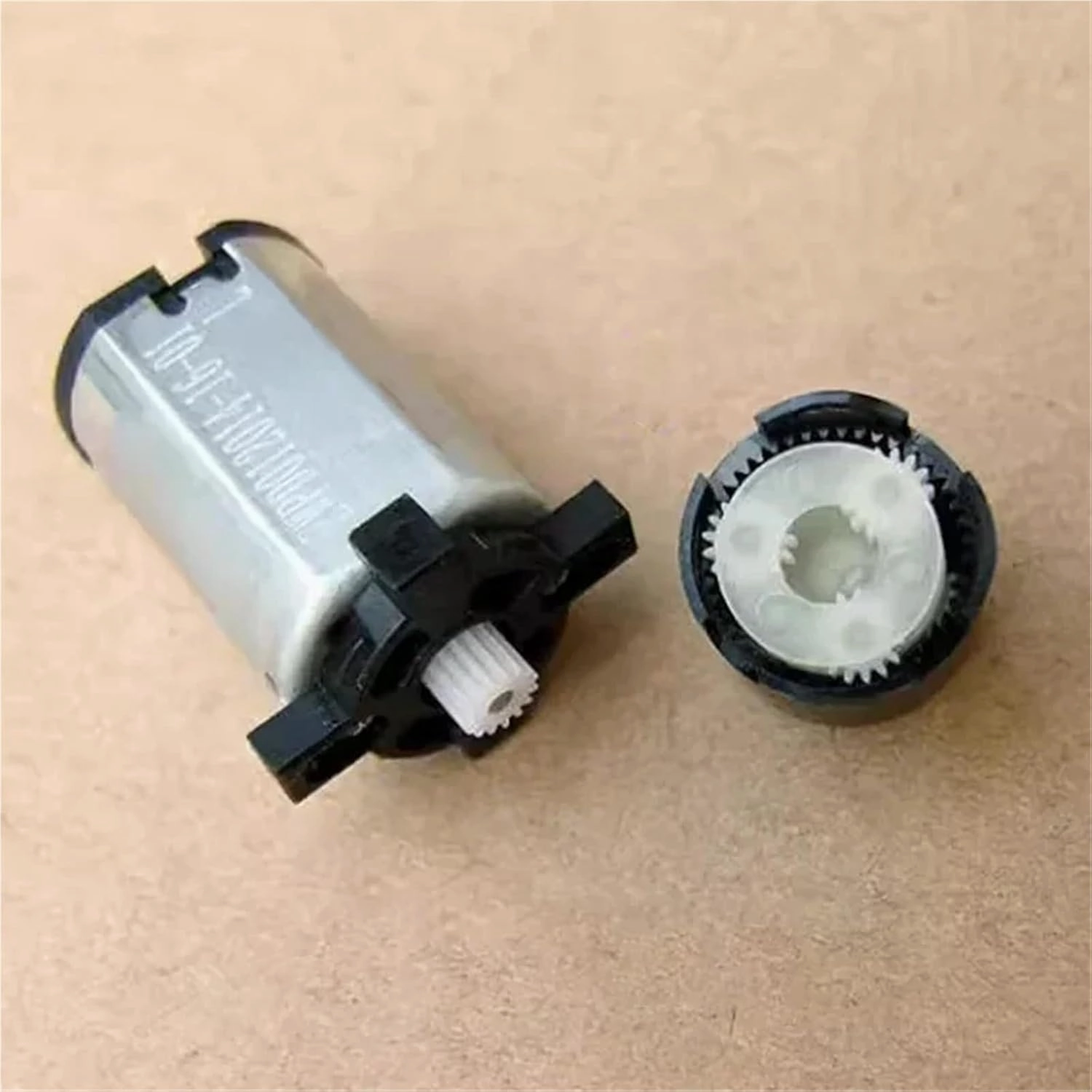

4.Gear Box: Two-stage planetary gear deceleration
5.Gear ratio: about 1:16
6.Weight: 11g
7.Rated voltage: 6.0V
8.Suitable voltage: 5.0V-7.2V
9.Test data:
Voltage:5.0V Current:11mA Speed:290RPM
Voltage:6.0V Current:13mA Speed:350RPM
Voltage:7.2V Current:22mA Speed:423RPM
10.Note: This gear motor is plastic gearbox, so the is not large, please buyers know this before buying.
=========================
Package List:
Gear Motor x 1PC
==========
Hign-concerned Chemical : None
Model Number : Mini 031 Gear Motor
Construction : Permanent Magnet
Protect Feature : Explosion-proof
Type : Gear Motor
Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Model : ZWPD012014-16
Output shaft diameter : 3mm (dual flat shaft 2mm)
Rated voltage : 6V
Speed : 350RPM

• Package Dimensions ‏ : ‎ 11.81 x 7.87 x 3.94 inches; 1.76 ounces
• Department ‏ : ‎ unisex-adult
• Date First Available ‏ : ‎ June 14, 2025
• Manufacturer ‏ : ‎ IYEYVDKJ
• Country of Origin ‏ : ‎ China
