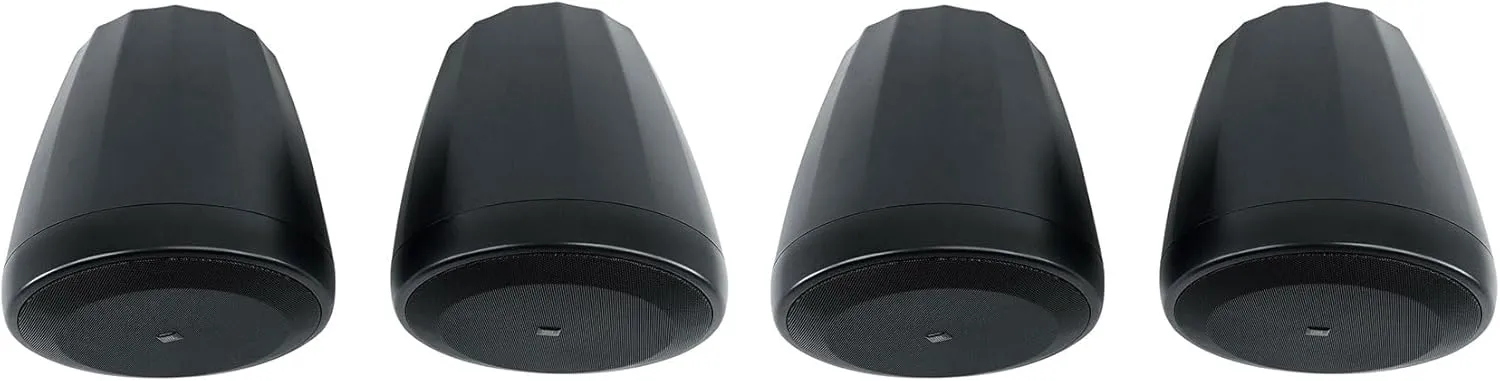

- Package Includes: (2) (2) JBI Control 67 P/T 6.5" Commercial 70v Black Hanging Pendant Speakers C67P/T. Features: RBI Radiation Boundary Integrator Technology. 120° conical coverage. 6.5" (165 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality. 75 Watts, 8 ohms and 60W multi-tap transformer. Black or white. Specifications: Frequency Range (-10dB): 58 Hz - 18 kHz. Frequency Range (±3 dB): 78 Hz - 16 kHz
- Power Rating: 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power. Nominal Sensitivity: 90 dB. Coverage Angle: 120° ( 20°/-15°). Directivity Factor (Q): 5.7. Directivity Index (DI): 7.5 dB. Maximum SPL (1m): 109 dB continuous pink noise, 115 dB peak. Impedance: 8 ohms. Transformer Taps: 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W. Transformer Insertion Loss: 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
- Drivers: LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former, HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former. Enclosure: High impact polystyrene. Grille: Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
- Outdoor Capability: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 - splashproof rating.. Input Connectors: Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- Suspension: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency: Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.. Dimensions (H x W x D): 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.. Net Weight (each): 5.2 kg (11.5 lbs). Shipping Weight (pair): 12.3 kg (27 lbs). Included Accessories: Two suspension cable systems (see "Suspension", above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.. Optional Accessories: MTC-PC60 top panel / terminal cover. Colors: Available in black or white (-WH). Paintable. Extended Range Full-Range Pendant Speaker
