- DC 5V to DC 12V Step Up Converter. 5-11V Wide Range Input, 12V output, Max Current 4A 48W. (CAN NOT WORK FOR LONG TIME at MAX CURRENT)
- Waterproof metal housing makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc.
- The import high heat conduction organic silica gel filling and sealing technology, and compatible with multiple automatic protection function, overcurrent, short circuit, overtemperature, waterproof, moistureproof.
- Built-in over-voltage, under-voltage, overload, over-heat and short circuit protection. The length of the line is about 12CM, slim, small volume, easy installation.
Product Name:

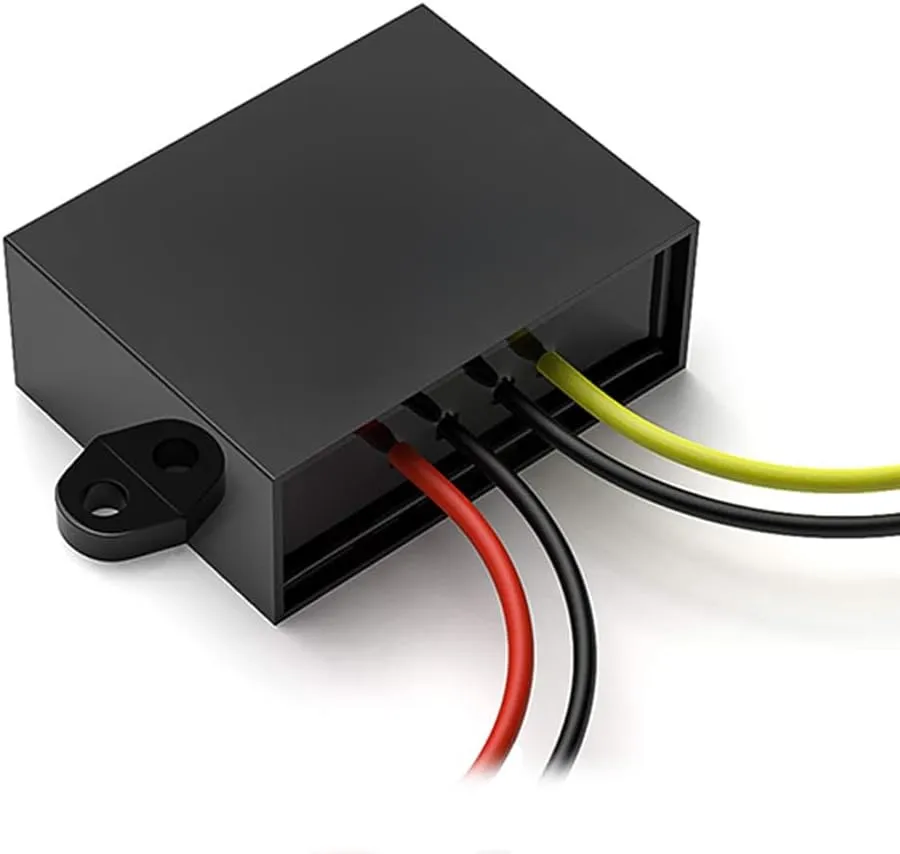

DC 5V to DC 12V Step Up Converter Regulator 4A 48W Power Supply Adapter for Car Vehicle Boat Motor Stereo Radio Solar System(Accept DC 5-11V Inputs)
The import high heat conduction organic silica gel filling and sealing technology, and compatible with multiple automatic protection function, overcurrent, short circuit, overtemperature, waterproof, moistureproof, these distinctive characters make our Power Supply Converter Regulator widely used on Bus, CMB, large trucks, motor, GPS navigation, solar power, photovoltaic energy, bus display, taxi advertising screen, car audio, LCD TV, LED, intercom and monitoring system.
Safety Instructional Manual
1. The load connected to the output end of the power regulator should not be more than MAX LISTED LOAD POWER, any higher rated load will cause damage to the power regulator.
2. Can not used long time by the MAX. LISTED LOAD POWER.
3. Please connect the converter and your device according to the wiring diagram provided.
Features:
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 95% power conversion efficiency.
-Si-Fe Cores magnetic loop, high temperature resistance and super stability.
Specifications:
Material: Plastic, Electronic Parts
Input: DC 5V(5V - 11V)
Output: DC 12V 4A 48W
Conversion Efficiency: More Than 95%
Over temperature Protection: 150C
Protection Grade: IP67
Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)
Body Size: 58mm x 40mm x 22mm(L*W*H)
Package Includes:
DC 5V to DC 12V 4A 48W Waterproof Power Converter x 1
