- Experience groundbreaking bass performance with the KICKER SoloX L7X. This competition subwoofer is equipped with a triple-stacked ferrite magnet and hyper-extended pole piece, creating an enormous and linear magnetic field for ultra-deep bass even at high volumes.
- The SoloX L7X features Forced Air Cooling technology, ensuring that the subwoofer remains cool under extreme conditions. This advanced cooling system contributes to sustained performance and durability, making it ideal for competition-level setups.
- Built for competition, the subwoofer boasts a heavy-duty UV-resistant Santoprene surround, double-pressed pulp cone, and a cast-aluminum basket. This combination ensures not only powerful sound but also durability under intense usage.
- Repairing and maintaining your SoloX L7X is hassle-free with the field-replaceable recone kit. With an exclusive surround compression system, bolt-on spider landing, and alignment shims, you can keep your subwoofer performing at its best without the need for professional assistance.
- The subwoofer's design includes a single 8 AWG terminal and a dual 8 AWG terminal block, providing flexibility in wiring configurations. Whether you're aiming for a single or dual setup, the SoloX L7X adapts to your specific installation needs.

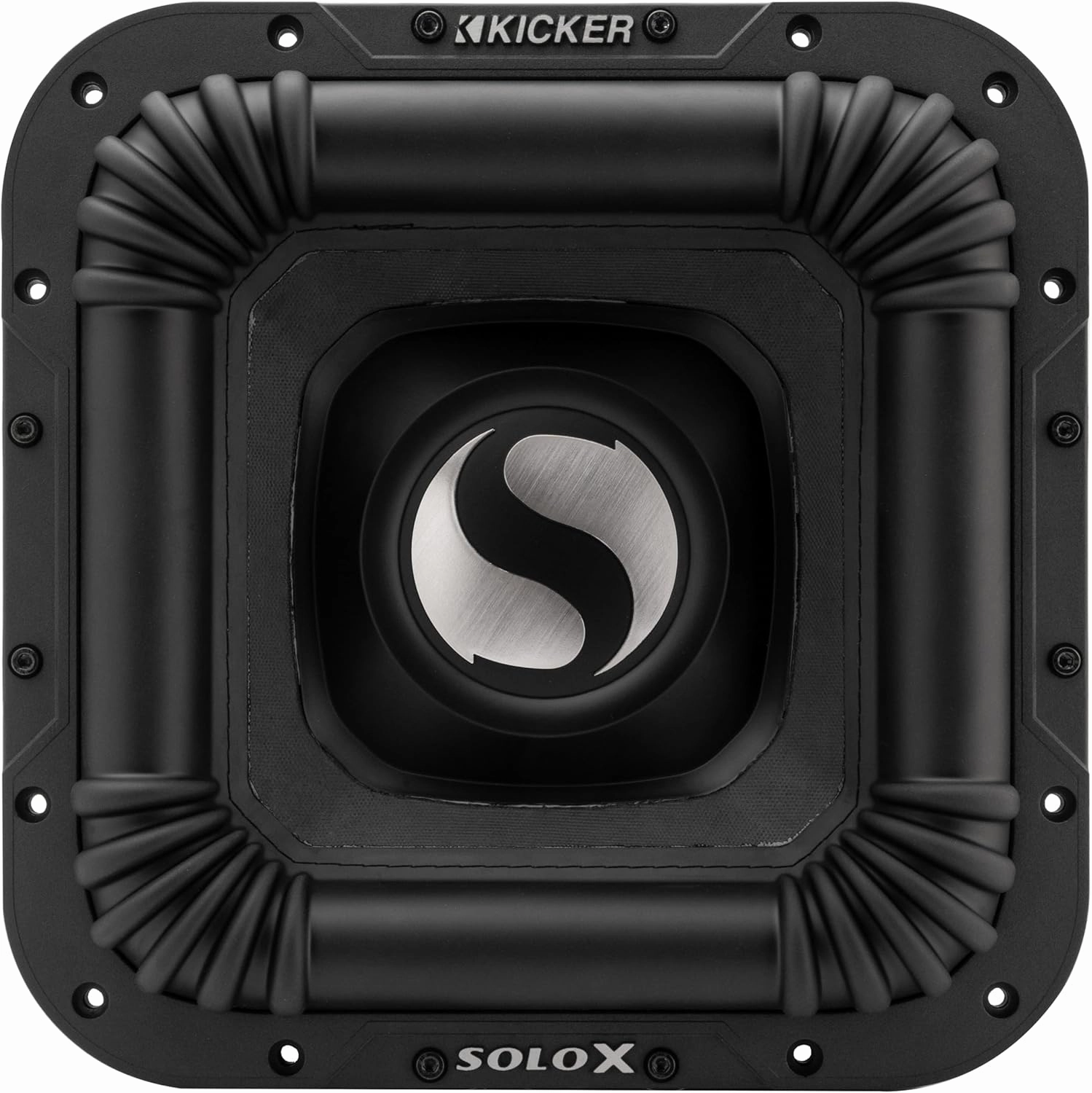

The KICKER SoloX L7X Ferrite Competition Subwoofer brings the most advanced bass technology and unprecedented performance, from the guys who invented it for a vehicle. A motor like no other – it includes a massive, triple-stacked ferrite magnet surrounding a hyper-extended pole piece, engineered for an enormous, more linear magnetic field and amazing heat dissipation. It's ultra-deep bass at very high volume. L7X's three-inch voice coil is supported by a dual-spider suspension system, and the double-pressed pulp cone is attached to an ultra-long-throw Santoprene surround - equipped with KICKER's square cone tech and ribbed corners for continuous force and air movement. Field-Replaceable Recone Kit - Using an exclusive, surround compression system, bolt-on spider landing, and helpful alignment shims, repairing an L7X is no sweat! Features: Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
Forced Air Cooling
Three-inch, aluminum voice coil former
Dual-spider suspension
Double-pressed pulp cone
Heavy-duty UV-resistant Santoprene surround
Custom rubber magnet boot
Cast-aluminum basket
Single 8 AWG terminal and dual 8 AWG terminal block
Triple-Stacked Ferrite Magnet
Specifications:
Size (in, cm) - 12, 30
Rated Impedance (Ohms) - 1 DVC
Rec Amp Power rms - 1000-2000
Frequency Response - 20-100
Magnet Diameter (in, cm) - 8-11/16, 22
Total Magnet Weight (oz, kg) - 406, 11.5
Voice Coil Diameter (in, mm) - 3, 75
Voice Coil Winding Width (in, mm) - 2.5, 62.5
Top Plate Thickness (in, mm) - 0.5, 13
Xmax (in, mm) - 1.25, 31.25
Mounting Cutout (in, cm) - 11-1/16, 28.1
Mounting Depth (in, cm) - 10-1/8, 25.7
Recommended Vented Box Volume (Cu. Ft., L) - 3, 84.9
Port Opening (in x in, cm x cm) - 3.5 x 13, 9 x 33
Port Length (in, cm) - 36.5, 93
Vented Enclosure Tuning Frequency (Hz) - 31
- Date First Available : January 5, 2022
- Manufacturer : Kicker
