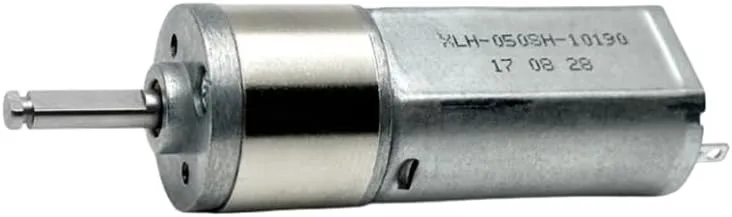

- Metal gear box, precious metal brush micro motor. The applicable voltage is DC 3.0V-7.4V. The gearbox of this batch of reduction motors is very precise, and the motors are mainly used for electronic door locks For DIY smart car, robot model, camera pan tilt, monitoring equipment, office automation equipment, etc
- Motor specifications : 26.5 * 15.4 * 11.8 mm (050 motor)
- [Gearbox Specification]: 16 mm
- Output shaft diameter : 3 mm (with flat D-type 2.5mm)
- Output shaft length: 11.2 mm
Product Descriptions:
Metal gear box, precious metal brush micro motor. The applicable voltage is DC 3.0V-7.4V. The gearbox of this batch of reduction motors is very precise, and the motors are mainly used for electronic door locks For DIY smart car, robot model, camera pan tilt, monitoring equipment, office automation equipment, etc
Motor specifications : 26.5 * 15.4 * 11.8 mm (050 motor)
[Gearbox Specification]: 16 mm
Output shaft diameter : 3 mm (with flat D-type 2.5mm)
Output shaft length: 11.2 mm
Weight : About 29.9 g
Voltage range: 3.0V-7.4V
Voltage current speed
3.0V 35 ma 50 rpm
5.0V 42 ma 90 rpm
6.0V 47 ma 108 rpm
7.4V 50 ma 130 rpm
