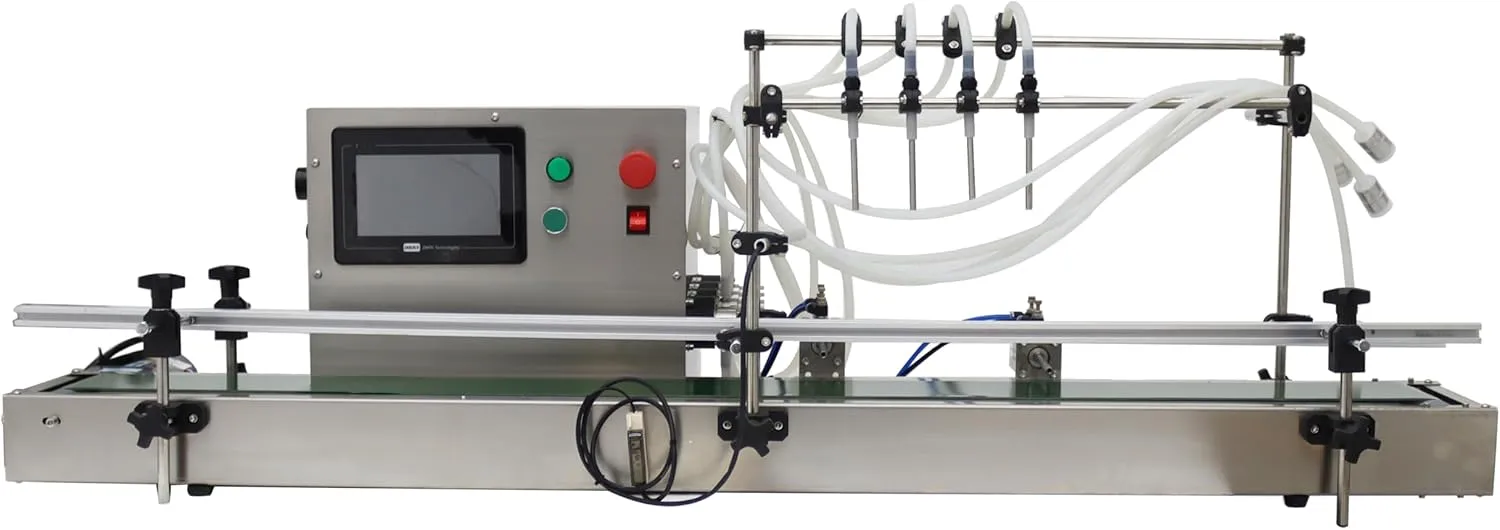

- 【Application】This is a 4 head magnetic pump liquid filling machine for beverages, cosmetics and etc. You only needs to place the bottle on the conveyor belt and the bottles will moves forward with the conveyor belt, After detecting the bottle, the machine will fill automatically. The Liquid Filling Machine can be used with the Bottle Capping Machine, Labeling Machine and Bottle Distributing Machine we offered.
- 【4 Heads Filler 】4 filling nozzles are equipped with the liquid filler. The filling volume of each nozzle is adjustable. The filling nozzle equipped with the liquid filler is 8mm. Nozzles of other sizes are customizable.
- 【Movable Filling Nozzle】The height of the filling nozzle is adjustable for bottles of different heights. The height of suitable bottles is 0.78-7.87in/2-20cm. The distance between the four heads are also adjustable.
- 【Precise Filling】The photoelectric tracking sensors are adopted to ensure the automatic correcting of the Liquid Filling Machine. The Liquid Filler adopts intelligent control panel with touch screen, simple to operate. You can set parameters such as filling volume. filling speed and etc.
- 【With Conveyor】Conveyor is equipped with the Liquid Filling Machine, making it suitable for production line. The transferring speed can be adjusted. The conveyor also has guardrails on the 2 sides. The distance between the guardrails can be adjusted according to the size of the bottles.
Parameters
Voltage: 110V/60Hz
Filling volume: 4*(10-1000ml)
Conveyor width: 4.72inch(12cm)
Conveyor belt length: 56.7inch(144CM)
Suitable bottle diameter: 0.78-4.72inch(2-12cm)
Bottle height: 0.78-7.87inch(2-20cm)
Output speed: 3L/min single head(Depends on the customer's filling volume)
Precision: ±1%
Package weight: 192lbs
Package size: 64*33*28inch
Item Number 160234
- Package Dimensions : 64 x 33 x 28 inches; 192 Pounds
- Date First Available : February 6, 2024
- Manufacturer : TECHTONGDA
