Specifications:

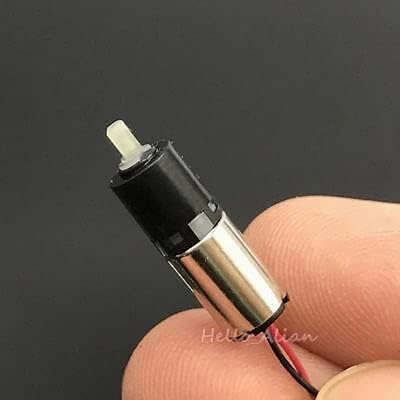

1.Motor diameter: 6 MM (6*8MM coreless motor)
2.Gearbox diameter: 6 MM
3.Total height: 16.5 MM(Not include shaft)
4.Output shaft diameter: 1.95 MM (Flat: 1.5 MM)
5.Output shaft length: 2.8 MM (from the panel)
6.Gearbox ratio: 1:26
7.Voltage: 3V
8.Current: 45 mA(Stall current: 200mA)
9.Speed: 32000RPM
10.Output shaft speed: 1200 RPM
11.Torque: 25g/cm (Stall torque: 55g/cm)
12.Size detail:
Package includes:
Motor x 1pc
Item specifics:
Torque: Not clear
Usage: Home Appliance,Other
Model number: 6mm Gear motor
Output power: Not clear
Continuous current(a): Not clear
Protect feature: Totally Enclosed
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
Type: Micro Motor
Certification: ce,ROHS
Origin: Mainland China
Voltage range: DC 3V
No-load speed: 1200RPM
